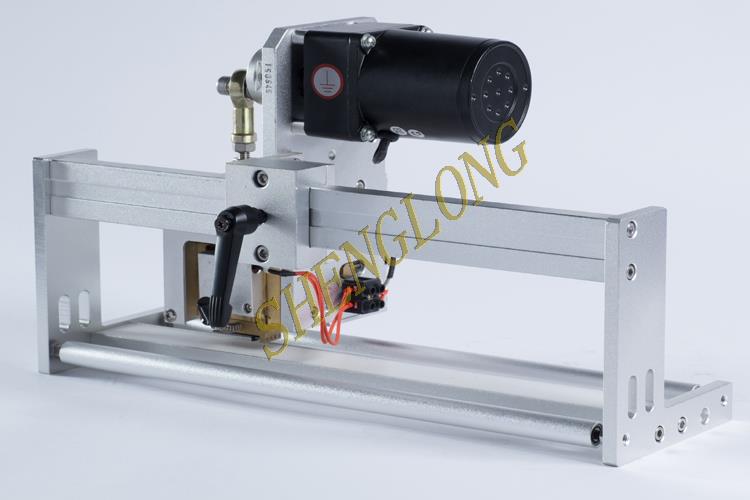

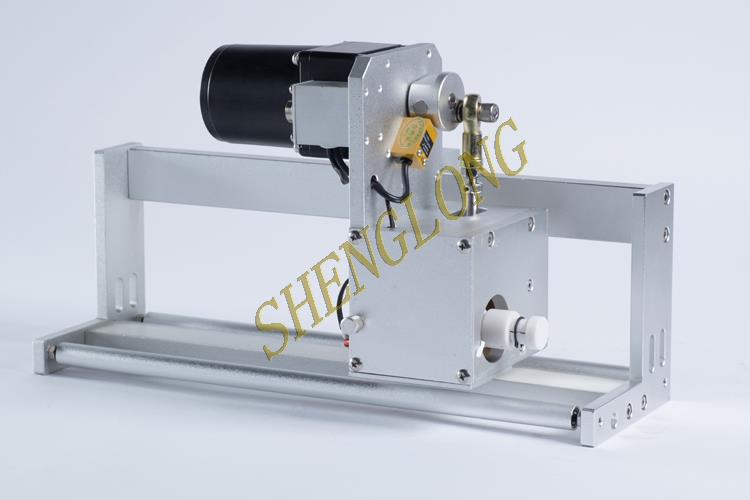

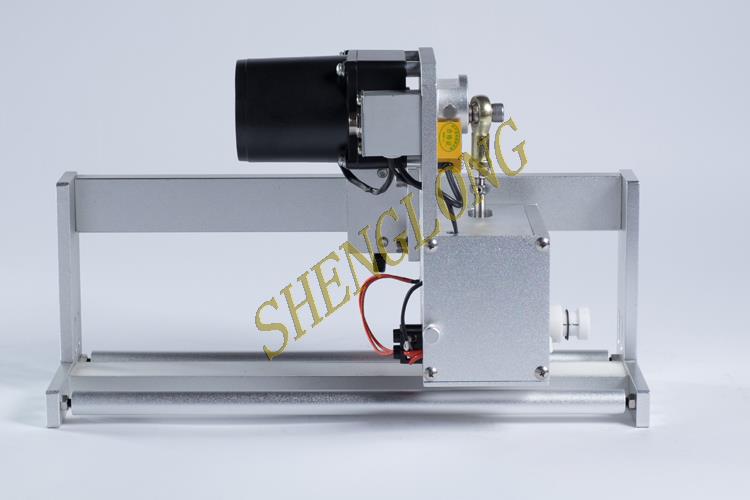

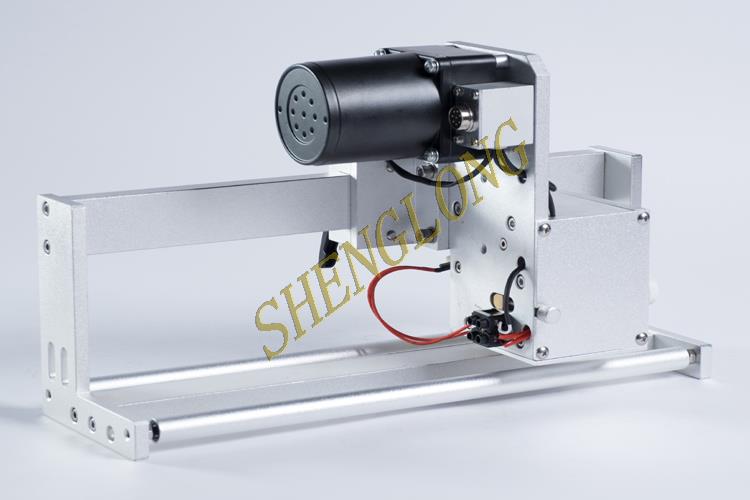

MS-100 CODING MACHINE

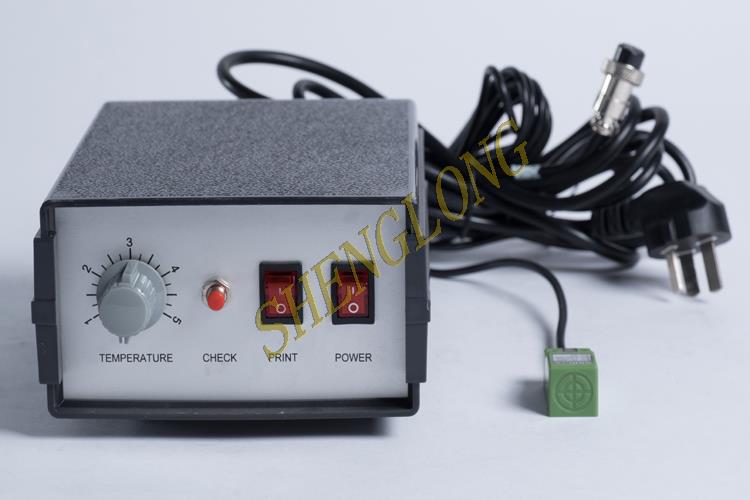

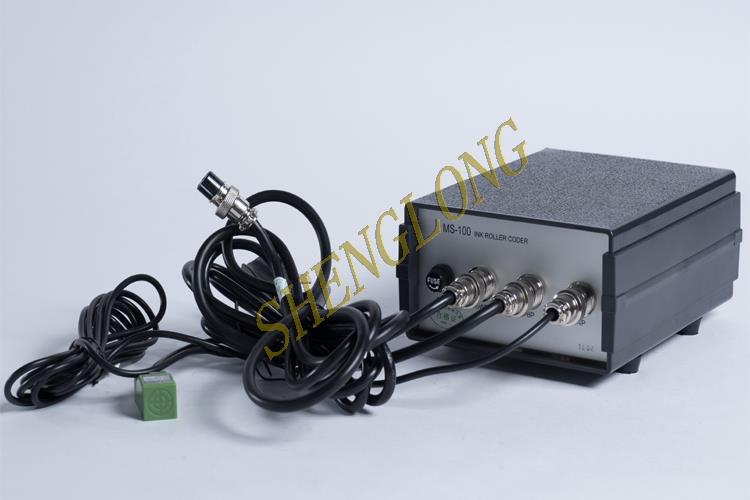

MS-100 Control box 170×140×88MM
○ Ink rolls imported from UK make printing clearer and ensure stronger adhesive force.
○ Contactless switch adopts synchronous signal, which is more stable.
○ Electric motors made by famous factory can operate stable under maximum load for long time.
○ Advanced aluminium alloy anodic treatment is of attractive appearance and durability.
○ Accessories and standard components made of stainless steel material are corrosion resistant.
○ It is adjustable at any time to conduct printing of lateral direction of length direction.
○ It is suitable for auxiliary coding of all kinds of intermittent packing machinery such as grain packing machines and paper towel packing machines. It is widely applied to food, medicine and daily use chemistry industries.
○ 技術(shù)參數(shù)
型號Model
|
MS-100
|
|
電源電壓Voltage
|
AC220V/50HZ
|
|
功率Power
|
220W
|
|
打印速度Printing speed
|
20-120pcs/min
|
|
打印面積 Printing area
|
三列最大 12×30mm
|
|
溫度范圍 Temperature range
|
0-300℃
|
|
墨輪尺寸 Ink roll dimension
|
35×30mm
|
|
外形尺寸Size(L×W×H)
|
405×235×255mm
|
|
凈重Weight
|
10kg
|
